Instruction for installation:

Lapis-ex should be installed in a place where there is no risk of damage resulting from hitting or flooding. In order to avoid the risk of an electric shock or fire basic industrial safety rules must be observed.

Avoid any squeezing, pulling or stretching of the power lead and keep it safe from any other sort of damage. In case of damage to the power lead, switch off the mains power supply immediately. Fix Lapis-ex to the wall using metal screwes. Place it near the pipe which is to be treated. Install both band clips on the supply pipe so that the water is treated before it reaches the subsequent elements of the whole system.

If the system has a water pump, Lapis- ex should be installed closely to where the water flows out of the pump.

In order to increase the effectiveness of Lapis- ex, it is recommended to put in approx. 1m length of pipe bigger in inside diameter than the rest of the pipeline. For example, use a section of 120mm in diameter for a pipe of 80mm (maximum inside diameter of the pipe - 150mm).

For installation of Lapis- ex follow these steps:

  1. remove the insulation layer from 200mm length of pipe, clean and prepare it

    for installation of Lapis-ex,

  2. wind two adhesive film insulation bands on the prepared length of pipe within

    the distance of 120mm from each other (measured from the middle of each band)- the bands are not required if the pipe is made of plastic,

  3. wind the aluminium foil bands on top of the insulation bands,

  4. place the metal band clips on top of the aluminium foil bands,

  5. fix Lapis- ex to the wall using the metal screwes,

  6. connect the metal band clips to Lapis- ex using two insulated leads,

  7. connect the power lead to mains power supply (~230V/ 50-60Hz),

  8. make sure that both photodiodes have lit.

If the red photodiode does not light, check the connection of the power lead. If the yellow photodiode does not light, make sure that any of the metal band clips does not touch the metal pipe.

In case of short- circuiting the metal band clips while Lapis- ex is working, there is no danger of an electric shock or damage to the device. The way the component parts have been encased ensures correct functionning of the unit which requires no servicing.

The producer takes no responsibility for the device being used in ways or for purposes other than those specified.

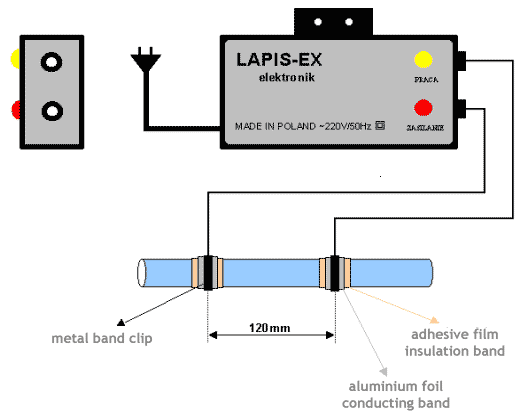

Diagram:


montaz
